[Minimiser & Auto Stirrer]

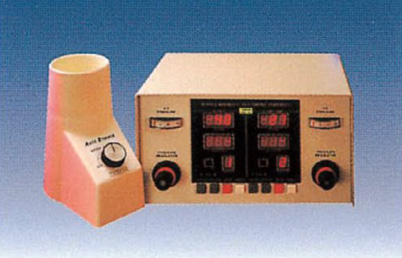

Automatic mixer & sprayer
Minimiser economically controls spray time and amount of diamond slurry and lubricant to be used.
Auto strirrer disperses the diamond powder by stirring the diamond slurry with the spin bar at a regular basis to ensure equal distribution
EM-1 Minimizer, equipped with an electronic digital reader, is perfectly automatic, easy to use and read, and has a constantly reproducible performance.
Spray interval is up to 999 seconds and spray time ranges from 1 second to 9 seconds.
※ You can check the contents by scrolling left / right.
Plate Type & Purpose
Minimiser (EM-1) Spec Autostirrer (AS-1) Spec
Power 100V-200V single-phrase Power 100V-200V single-phrase
Air Pressure 2-5 kgr/cm2 RPM 0-1550
Interval Time 0-999 sec
Spay timer 0-9 sec
Dimension 300×150×150mm

Dimension
(OD*H)

φ100m×200H
Weight 5.5kg Weight 1.9kg






Accessories-Spary Nozzle & Spin Bar
attached to the Minister and slurry bottle, Nozzle and Spin Bar participating in spraying directly is necessary needed in slurry Grinding attaching auto agitator.
Nozzle Spec
Code Name Nozzle Length
5A 130mm
10A 255mm
15A 380mm
