[Diamond Slurry]

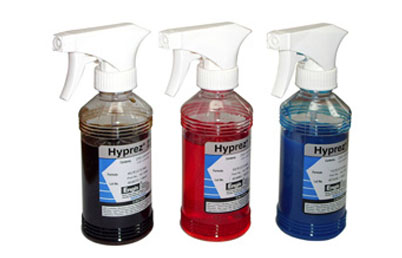

Spray Type Diamond Slurry
- Spray type slurry for polishing.
- It is used in a final mirror polishing for metallographic examnation in lab.
※ You can check the contents by scrolling left / right.


Size Type and Mesh Size Comparison Table
No. Micron Size Range Mesh Size
1 1/10 0~1/5 240,000
2 1/4 0~1/2 100,000
3 1/2 0~1 60,000
4 1 0~2 14,000
5 2 1~3 11,000
6 3 2~4 8,000
7 4 2~6 5,000
8 5 3~7 4,000
9 6 4~8 3,000
10 9 8~12 1,800
11 15 12~22 1,200
12 30 22~36 600
13 45 36~54 325
14 60 54~80 270

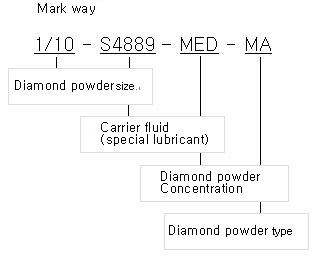

Diamond Powder Type
Type Feature
S-1313
(Oil)
* A protection of wall of hard plate(ceramic, casting,, aluminum, etc.) and a maintenance of the wet
* Fitness to metal, carbide, ceramic, ferrite, processing of a mirror surface of the meehanite, finishing polishing work.
* Fitness to electron-optics filed, lapping/polishing work of semiconductor temperate
* Fitness to OS type when use a lubricant
S-75
(Liquid)
* Fitness to Hard Lapping using Polishing Cloth
* High coefficient of viscosity
* Fitness to W type when use a lubricant
S-841
(Oil&Liquid)
* Fitness to finishing polishing work requiring high flatness & minimum   scratch
* Fitness to W type when use a lubricant
* Sometimes, gain effect when it is worked with Polishing Cloth
S-4889
(Liquid)
* Great Cutting·Surface-abstraction, easy cleaning after work
* Fitness for an advanced material like ceramic, ferrite, electron-optics filed, semiconductor temperate, processing of electronic parts including ceramic hiro boud Magnetic Memory Head
* Fitness to W type when use a lubricant
* Beside the sizes listed above, a special-grande size is available.
Plate Type & Purpose
Particle Size 1/10μ 1/4μ 1/2μ 15μ 30μ 45μ 60μ #230 #170 #100
Micron Size 0~1/5 0~1/2 0~1 0~2 1~3 2~4 4~8 6~12 10~12 22~36 36~54 54~80
Mesh Size 240,000 100,000 60,000 14,000 11,000 8,000 3,000 1,800 1,200 600 325 270 230 170 100
※ It is possible to order a special grade besides the size above.
